Tata 3d Weldmesh in India – Mesco Weldmesh Industries
In today’s fast-evolving construction and infrastructure sector, Tata 3D Weldmesh in India has emerged as a trusted solution for strength, durability, and efficiency. Designed using advanced welding technology and high-quality steel, Tata 3D Weldmesh is widely used in residential, commercial, industrial, and infrastructure projects across the country.
What is Tata 3D Weldmesh?
Tata 3D Weldmesh is a factory-fabricated welded wire mesh made from high-tensile steel wires. These wires are welded at precise intervals to form a rigid, three-dimensional structure that offers superior load-bearing capacity and uniform strength.
Unlike conventional reinforcement methods, 3D weldmesh provides consistent quality, faster installation, and reduced material wastage.
Key Features of Tata 3D Weldmesh
- High Strength & Durability – Manufactured from premium-grade steel for long-lasting performance
- Uniform Welding – Ensures consistent spacing and structural integrity
- Corrosion Resistance – Suitable for harsh Indian climatic conditions
- Cost-Effective – Reduces steel consumption and labor costs
- Easy Installation – Faster construction with minimal on-site effort
Applications of Tata 3D Weldmesh in India
Tata 3D Weldmesh is widely used across multiple sectors, including:
- Residential & Commercial Buildings – Slabs, walls, and foundations
- Infrastructure Projects – Roads, bridges, flyovers, and tunnels
- Industrial Construction – Warehouses, factories, and plants
- Fencing & Security – Industrial fencing, boundaries, and enclosures
- Precast & RCC Works – Enhances structural accuracy and speed
Why Choose Tata 3D Weldmesh?
Tata is a name synonymous with quality, trust, and innovation. Choosing Tata 3D Weldmesh in India means investing in a product that meets stringent quality standards and delivers reliable performance.
- Backed by Tata’s brand assurance
- Manufactured under strict quality control
- Improves construction speed and accuracy
- Enhances overall structural safety
Tata 3D Weldmesh vs Conventional Reinforcement
Compared to traditional reinforcement bars, Tata 3D Weldmesh offers:
- Better crack control
- Improved load distribution
- Reduced dependency on skilled labor
- Cleaner and more organized construction sites

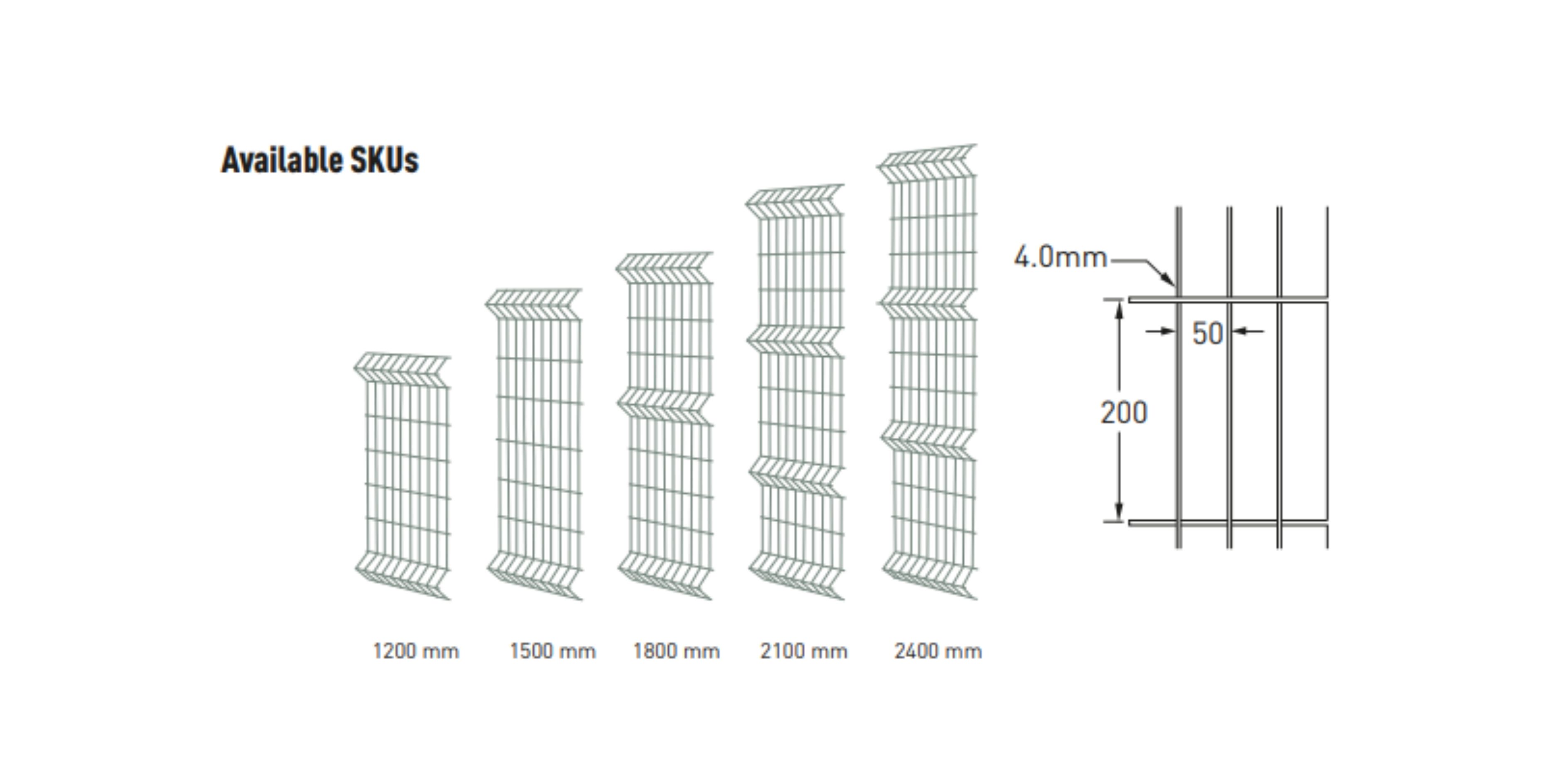

Tata 3D Weldmesh – Technical Specification
- Product Name: Tata 3D Weldmesh (3D Welded Mesh Fence)
- Brand: Tata Wiron / Tata Steel
- Material: High-quality Galvanized Iron (GI) wire
- Manufacturing Process: Electrically welded with V-shaped 3D bends for added rigidity
- Wire Diameter: 4.0 mm (standard)
- Mesh Opening Size: 50 mm × 200 mm (approx.)
- Panel Length: 2500 mm (approx. 8.2 ft)
- Available Heights: 4 ft, 5 ft, 6 ft, 7 ft, 8 ft
- Coating Type: Hot Dip Galvanized + Polyester Powder Coated
- Zinc Coating: Minimum 40 GSM
- Powder Coating Thickness: Minimum 80 microns
- Standard Color: Green (RAL 6005)
- Optional Colors: Available on request
- Corrosion Resistance: Suitable for outdoor and harsh weather conditions
- Weld Strength: High-strength spot welded joints
- Accessories Included: Fence posts, clamps, bolts, anchors, and fittings
- Installation Type: Base plate or direct embedment
- Applications: Industrial fencing, residential boundaries, commercial premises, highways, parks, airports, and high-security areas
Tata 3D Weldmesh – Weight Chart
| Height (ft) | Panel Size (mm) | Wire Diameter (mm) | Approx. Weight per Panel (kg) |
|---|---|---|---|
| 4 ft | 2500 x 1200 | 4.0 | ≈ 18 kg |
| 5 ft | 2500 x 1500 | 4.0 | ≈ 22 kg |
| 6 ft | 2500 x 1800 | 4.0 | ≈ 26 kg |
| 7 ft | 2500 x 2100 | 4.0 | ≈ 30 kg |
| 8 ft | 2500 x 2400 | 4.0 | ≈ 34 kg |
Parts & Accessories Included – Tata 3D Weldmesh
- 3D Weldmesh Panels – Pre-bent 3D welded panels with uniform mesh pattern
- Fence Posts – Galvanized/Powder-coated vertical posts for panel support
- Base Plates – Heavy duty base plates for secure ground fixing
- Spider Clamps – Four-way clamps to hold panels firmly to posts
- Mushroom Head Bolts – High-strength bolts for clamp assembly
- Anchor Bolts – Foundation bolts for fixing base plates
- Caps & Cover Strips – Protective caps for posts and finishing trims
- Fasteners & Nuts – Complete set for installation and assembly
- Brackets & Clips – Optional fastening accessories for additional support

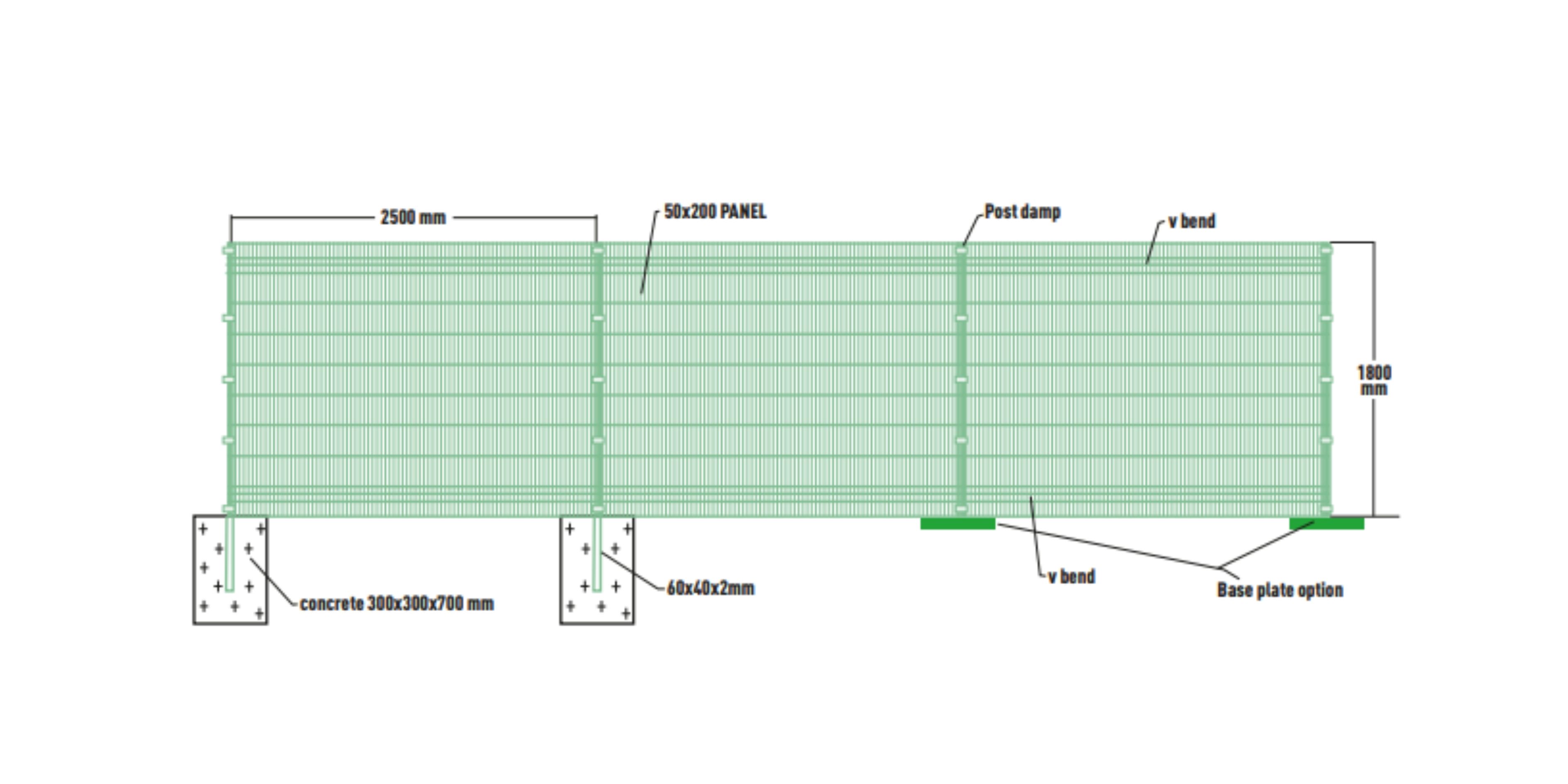

Tata 3D Weldmesh Installation Methods
1. Base Plate Installation
- Step 1: Mark the fence line and spacing for posts.
- Step 2: Drill holes in concrete/slab for base plate anchor bolts.
- Step 3: Position the post with base plate over drilled holes.
- Step 4: Secure posts using anchor bolts and tighten nuts.
- Step 5: Attach 3D Weldmesh panel to posts using spider clamps and bolts.
- Step 6: Adjust alignment, tighten all hardware, and check stability.
2. Direct Embedment Installation
- Step 1: Dig post holes along the fence line (recommended depth ~600–800 mm).
- Step 2: Place post into hole and check vertical alignment with a level.
- Step 3: Pour concrete mix around the post and allow setting.
- Step 4: Once concrete cures, fix 3D Weldmesh panels to posts with clamps and bolts.
- Step 5: Ensure panels are level and consistently spaced, then tighten all fasteners.
3. Post Cap and Clip Fixing (Optional)
- Install post caps on top of vertical posts to prevent water ingress.
- Use supplementary clips/brackets at panel joints for extra rigidity.
- Check all fasteners after installation for tightness and alignment.
Installation Tips
- Ensure proper ground leveling before marking the fence line.
- Verify panel alignment with a string line for consistent height.
- Use quality tools to avoid damaging coatings during installation.
- Wear safety gear including gloves and eye protection.
Benefits of TATA Wiron 3D Weldmesh
- Superior Strength & Rigidity: 3D V‑shaped bends increase structural strength and reduce deflection under load.
- Corrosion Resistance: Hot‑dip galvanization and polyester powder coating protect against rust and harsh weather conditions.
- Durable & Long‑Lasting: Designed for extended service life with minimal maintenance, even in outdoor environments.
- Enhanced Security: Robust mesh construction and tight apertures provide high security for residential, commercial, and industrial applications.
- Attractive Appearance: Clean, modern finish with optional color choices enhances property aesthetics.
- Easy Installation: Panelized design and comprehensive accessories make installation fast and hassle‑free.
- Low Maintenance: Requires minimal upkeep due to durable coating and rust protection.
- Cost‑Effective Solution: Combines strength, durability, and low maintenance to reduce long‑term costs.
- Versatile Applications: Suitable for perimeter fencing, sports grounds, industrial zones, parks, and high‑security areas.
- Consistent Quality: Manufactured to strict standards for uniform performance and reliability.
Why Buy Fencing Material from Mesco Weldmesh Industries
- Premium Quality Products: We supply high‑grade fencing materials that meet industry standards for strength and durability.
- Trusted Brand Partnerships: Authorized dealer for reputed brands including TATA Wiron, ensuring genuine and certified products.
- Wide Product Range: Extensive selection of welded mesh, 3D weld mesh, GI mesh, stainless steel mesh, and more for diverse applications.
- Competitive Pricing: Best value fencing solutions without compromising on quality, tailored to different budget needs.
- Customization Options: Mesh size, wire diameter, coating type, and panel dimensions available on request to suit project specifications.
- Expert Guidance & Support: Knowledgeable team to assist with product selection, technical specs, and installation advice.
- Timely Delivery: Reliable logistics and delivery across regions, ensuring your project stays on schedule.
- After‑Sales Service: Dedicated support for any product inquiries or warranty assistance.
- Industry Experience: Years of expertise in supplying and advising on industrial and commercial fencing solutions.
- Customer Satisfaction: Proven track record of happy clients and high repeat business.
Conclusion
With the growing demand for efficient, strong, and sustainable construction solutions, Tata 3D Weldmesh in India is an ideal choice for modern projects. Its superior strength, cost efficiency, and ease of use make it a preferred reinforcement solution for builders, contractors, and engineers nationwide.
Frequently Asked Question
Tata 3D Weldmesh is a high-strength welded wire mesh made from premium steel wires, welded at uniform spacing to provide superior structural reinforcement in construction projects.
It is widely used in residential buildings, commercial complexes, industrial structures, infrastructure projects, RCC works, and fencing applications across India.
Key benefits include high durability, uniform strength, corrosion resistance, faster installation, reduced steel wastage, and overall cost savings.
Yes, in many applications it offers better crack control, uniform load distribution, reduced labor dependency, and improved construction speed compared to conventional TMT bars.
Yes, it is manufactured using high-quality steel and advanced welding technology, making it suitable for Indian climatic conditions and resistant to corrosion.
Yes, Tata 3D Weldmesh is available in various wire diameters, mesh sizes, and panel dimensions to meet specific project requirements.
Yes, Tata 3D Weldmesh is produced under strict quality control processes and complies with relevant Indian and international construction standards.
